Australia’s rugged terrain demands more from your 4WD than manufacturers typically provide. Factory underbody protection rarely extends beyond basic engine sump guards, leaving critical components like gearboxes and transfer cases vulnerable to the punishment that comes with serious off road adventures. The thin sheet metal guards found on most vehicles simply aren’t built for the rock strikes, deep ruts, and debris encounters that define Australia’s remote tracks.

The consequences of inadequate protection become apparent quickly. Damaged wiring can trigger limp mode, stranding you miles from help. Bent radiator supports create cooling problems that end adventures prematurely. Impact damage throws alignment out, leading to uneven tire wear and handling issues that plague your 4WD long after the trip ends.

Whether you’re tackling the red dirt tracks of the Outback or exploring coastal trails where salt air accelerates corrosion, proper underbody protection transforms a vulnerable factory vehicle into an adventure-ready machine. This guide covers the essential protection options available to Australian off roaders, from skid plates and bash plates to material choices that suit different terrain types. You’ll also discover effective rust protection strategies, including underbody protection sprays that keep vehicles performing reliably in both coastal and inland conditions.

Why Underbody Protection Matters for Australian Off Roaders

Immediate Risks – Damaged Components and Stranded Adventures

One well placed rock strike can turn your weekend adventure into an expensive nightmare. The list of vulnerable components hanging beneath your 4WD reads like a repair shop’s wishlist:

• Fuel tank
• Fuel lines
• Steering rack
• Lower control arms
• Brake and ABS sensor wiring,
• Sump
• Transmission
• Transfer case
• Exhaust system
• Radiator support
• Front and rear differentials

Differentials handle enormous power loads every day but don’t handle direct impacts well. Strike a rock hard enough and field repairs become nearly impossible without specialised tools.

The damage shows up fast and stops trips cold. A bent radiator support forces cooling issues that push you off the track. Damaged wiring or sensors throw your vehicle into limp mode, cutting power when you need it most. Sudden fluid loss from a cracked sump or punctured fuel tank leaves you stranded in places where mobile coverage doesn’t exist. Factory fuel tanks work fine for sealed roads, but sharp rocks and pointed sticks punch through them easily. One unlucky impact during a river crossing or bog recovery becomes the difference between driving home and calling for an expensive tow.

Long Term Costs – Corrosion and Drivetrain Wear

Repeated knocks create problems that build slowly but cost plenty. Alignment starts drifting, creating abnormal tire wear patterns. Suspension and driveline components wear out early from constant impacts. These issues creep up gradually but demand expensive fixes down the track.

Corrosion attacks fast once paint or factory shields get scraped away. Salt air and muddy clay accelerate damage around rugged coastal areas after protective coatings get compromised. Vehicles within 5 to 10 kilometres of the ocean face severe corrosion risks. The undercarriage contains plenty of unpainted or lightly protected metal – suspension arms, exhaust systems, and frame structures that rust quickly when salt and sand build up in hard t -reach spots. Well protected vehicles hold their resale value better because buyers notice undercarriages free from impact damage.

Australian Terrain Challenges: From Red Dust to Coastal Salt

Australia’s diverse environments create ideal conditions for accelerated vehicle deterioration. High humidity mixes with intense UV rays and salt laden coastal winds to form a corrosive combination that ages vehicles before their time. Red dust works its way into protective seals while coastal salt attacks any exposed metal surfaces. Much of our mud contains high salt concentrations, making those weeks long dirt accumulations particularly destructive.

Essential Underbody Protection Options for Your 4WD

Engine and Transmission Skid Plates

Engine and gearbox protection ranks as the most critical underbody upgrade for serious off roaders. These components share mounting space beneath the front of your vehicle, making combined plates the logical choice for maximum coverage. Lose your engine or transmission on a remote track, and you’re looking at expensive recovery costs or lengthy field repairs that most people simply can’t handle.

Combined engine and gearbox plates deliver continuous protection across the entire front drivetrain area. Laser cut, press formed steel construction with powder coat finishes offers proven durability in Australia’s harsh conditions. The seamless coverage eliminates gaps where debris can penetrate and cause damage to expensive components.

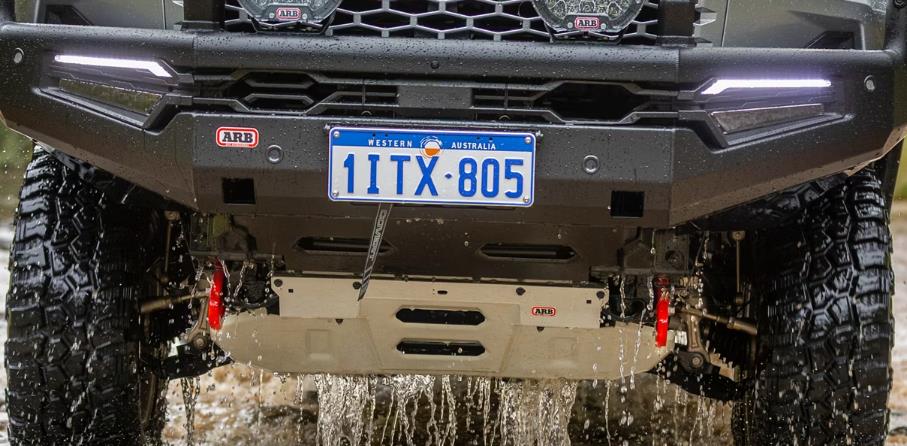

Sump Guards and Front End Bash Plates

Sump guards take a different approach, concentrating protection on the most vulnerable front end components rather than covering the full engine bay. These plates shield your radiator, steering stabiliser, air conditioning system, and oil cooler from the rock strikes that can end trips early.

What sets quality sump guards apart is their visibility from the front of your vehicle – you can actually see the protection working when obstacles scrape beneath your 4WD. They also absorb impact energy during those unfortunate animal encounters that happen on dawn and dusk drives. Factory plastic bash plates might look the part, but they lack the strength needed for genuine off road punishment. Aftermarket options incorporate recessed bolt heads, strategic cooling cut-outs, and engineered folds that add strength exactly where impact forces concentrate.

Differential Protection Front and Rear

Your differentials handle enormous power loads every time you engage 4WD, but they’re surprisingly vulnerable to direct rock impacts. Damage a diff housing on a remote track, and you’ll discover that field repairs are practically impossible without specialised tools and replacement parts you probably don’t carry.

Two main protection styles exist: replacement covers that completely replace your factory differential cover, and bolt on guards that add external armour. ARB’s differential covers represent the replacement approach well, featuring recessed hardware that won’t snag on obstacles, computer optimised cross bracing for maximum structural rigidity, and low profile drain plugs designed to resist damage. The engineering shows in real world performance.

Rock Sliders and Side Impact Protection

Rock sliders serve a dual purpose that many people don’t fully appreciate. Protection steps help you climb into your 4WD while providing some impact absorption, but proper rock sliders are engineered to support your vehicle’s entire weight during side contact with obstacles.

The mounting makes all the difference. Quality rock sliders bolt directly to your chassis using multiple mounting points that distribute impact loads along the slider’s entire length. Heavy duty 60.3mm steel tubing construction protects your rocker panels and outer body work from the kind of technical terrain damage that costs thousands to repair properly.

Transfer Case Guards

Transfer case protection might seem like overkill until you price a replacement unit. Rival’s 6mm aluminium alloy transfer case plate demonstrates how material choice affects long-term durability.  The aluminium itself provides corrosion resistance, maintaining protection even when surface coatings get scraped during off road use. Bolt on installation using existing factory mounting points means no drilling required, which matters when you want professional results without permanent modifications.

Choosing the Right Protection for Your 4WD

Terrain Determines Protection Requirements

Choose underbody protection that reflects the terrain you actually ride rather than following generic advice. If your adventures take you off track into remote, technical country, full coverage is most beneficial. For weekend trips on forest trails or moderate dirt roads, aluminium plates strike the best balance between strength and weight.

Overlanding expeditions spanning multi week journeys across diverse terrains demand aluminium’s weight advantages. The reduced mass helps maintain fuel economy and prevents excessive suspension strain over long distances. Rock crawling through technical trails and competitive events requires either aluminium or steel construction for maximum impact protection against sharp, direct strikes.

Material Choice – Steel vs Aluminium vs Stainless Steel

Mild steel bash plates represent the most economical option with straightforward field repairs, but they add significant weight to your 4WD. Aluminium delivers corrosion resistance and lightweight performance.  Qualities that prove invaluable in wet or coastal environments. Stainless steel combines impact strength with corrosion resistance but commands higher prices and tends to crack through work hardening.

Aluminium naturally forms a protective oxide layer when exposed to air, maintaining structural integrity longer without requiring extensive anti-corrosion treatments. This characteristic makes aluminium particularly suitable for Australian conditions where salt air and moisture create challenging environments.

Thickness and Weight Specifications

Steel and stainless plates typically measure 3mm or 4mm thick, while aluminium requires 6mm thickness to achieve comparable strength. Reputable suppliers suggest 3mm provides adequate protection for most applications, though 4mm remains the popular choice among serious off roaders.

Full bash plate sets weigh between 30kg and 50kg depending on coverage and material choice. Expect approximately 50% weight difference between aluminum and steel options. This weight difference becomes significant during extended trips where every kilogram affects fuel consumption and vehicle dynamics.

Installation Considerations

Bolt on installation using factory mounting points eliminates drilling requirements and maintains structural integrity. Custom fit plates install through pre drilled holes and conform to each underbody contour precisely.

Recessed bolt heads prevent damage when sliding over obstacles. Exposed bolt heads risk shearing or mangling during bottoming out, creating removal difficulties that can strand you in remote locations.

Maintenance Access Features

Plates without access holes for sump and oil pan plugs require complete removal during routine oil changes, increasing mechanic labour costs substantially. Quality protection incorporates strategically placed access ports that allow maintenance without removing the entire system.

Installation, Maintenance and Underbody Rust Protection

Professional Installation

Total 4×4’s professional installation guarantees that your underbody protection is applied correctly by trained specialists, delivering optimal coverage and warranty‑backed assurance. DIY rustproofing cuts costs and lets you tailor the job, but it demands specific skills; a faulty application can lead to early failure and ultimately cost more than hiring professionals.

Professional polyurethane coatings maintain their protective properties for over a decade, making them a worthwhile investment for serious off roaders. DIY solutions need frequent reapplication, adding ongoing maintenance costs and time commitments that many vehicle owners underestimate.

Underbody Rust Protection Spray and Coating Options

Endrust Chassis Shield provides clear, spray on barriers backed by over 40 years of rustproofing expertise. The clear finish allows you to inspect the underlying metal while maintaining protection against corrosion.

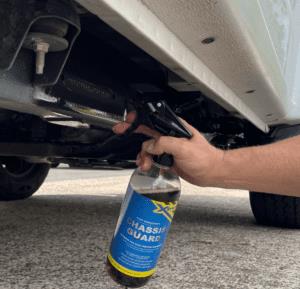

XTROLL Chassis Guard covers most 4WD underbodies with just one litre and requires reapplication every 12 months on clean surfaces. The coverage makes it cost effective for regular maintenance schedules.

Beach Barrier offers minimum two weeks of beach protection or six months of on-road protection when applied 24 to 48 hours before trips. This timing flexibility makes it practical for planned coastal adventures.

Regular Maintenance Schedule for Coastal and Outback Conditions

Coastal vehicles need monthly washing to prevent long term damage. Salt air accelerates corrosion, making regular maintenance essential rather than optional. Rinse undercarriages immediately after beach exposure using water only – avoid degreasers that reduce coating effectiveness.

Cars with undercarriage rustproofing treatments show 40 percent lower chance of severe rust damage compared to untreated vehicles. The statistics speak for themselves.  Proper maintenance pays off through reduced repair costs and better resale values.

Conclusion

Australia’s unforgiving terrain doesn’t forgive unprepared vehicles, but proper underbody protection changes everything. The investment in quality skid plates, differential guards, and rust protection pays for itself the first time you avoid a costly tow from a remote track or prevent thousands in drivetrain damage from a single rock strike.

Smart protection choices based on your actual adventures, not marketing promises, will make the difference between vehicles that age gracefully and those that deteriorate rapidly. Coastal drivers who embrace regular maintenance routines and appropriate treatments enjoy significantly better resale values and fewer surprises during service intervals.

The right protection setup transforms any factory 4WD into a capable adventure machine that handles everything from Simpson Desert crossings to Fraser Island beach driving with confidence. Whether you’re planning weekend escapes or extended expeditions, protected vehicles simply perform better and last longer in Australian conditions.

Don’t forget to grab a Solo Diesel misfuelling prevention cap while you’re upgrading your protection.  Nothing ruins a remote adventure faster than putting petrol in a diesel tank.

Key Takeaways

Protecting your 4×4’s underbody is essential for Australian off roading, where factory protection often proves inadequate against harsh terrain and costly component damage.

• Factory protection is insufficient – Most 4x4s leave the factory with thin guards protecting only the engine sump, leaving critical components like gearbox and transfer case exposed to damage.
• Choose materials based on terrain – Aluminium offers the best balance of weight and corrosion resistance for most conditions, while steel provides maximum impact protection for extreme rock crawling.
• Coastal vehicles need extra protection – Cars within 5-10km of the ocean face severe corrosion risks and require monthly washing plus specialised rust protection treatments to prevent long term damage.
• Professional installation ensures proper coverage – While DIY saves money, professional installation with warranty backing delivers expertise that prevents costly mistakes and ensures effective protection.
• Regular maintenance prevents expensive repairs – Monthly undercarriage washing for coastal vehicles and immediate post-beach rinsing can reduce severe rust damage by 40% compared to untreated vehicles.

FAQs

Question 1 – What components are most vulnerable to damage without proper underbody protection?

The most vulnerable components include the fuel tank and fuel lines, steering rack, lower control arms, brake and ABS sensor wiring, sump, transmission, transfer case, exhaust system, radiator support, and both front and rear differentials. Differentials are particularly susceptible because while they handle massive power loads daily, they react poorly to direct impacts and are nearly impossible to repair in the field without specialised tools.

Question 2 – Should I choose steel or aluminium for my 4×4’s underbody protection?

Aluminium provides the best balance for most off roaders, offering corrosion resistance, lightweight performance, and rust-proof qualities ideal for wet or coastal environments. Steel is the cheapest option and easiest to repair in the field but adds significant weight. For general off-roading and overlanding, aluminium at 6mm thickness delivers similar strength to 3-4mm steel while weighing 50% less. Reserve steel for extreme rock crawling where maximum impact protection is essential.

Question 3 – How often should I wash my 4×4’s undercarriage if I live near the coast?

Coastal vehicles require monthly washing to prevent long-term corrosion damage. If you drive on the beach, rinse the undercarriage immediately after exposure using water only—avoid degreasers as they reduce the effectiveness of protective coatings. Vehicles within 5-10 kilometers of the ocean face severe corrosion risks, and proper maintenance can reduce severe rust damage by 40% compared to untreated vehicles.

Question 4 – Can I install underbody protection myself or should I use a professional?

Professional installation delivers trained expertise, ensures proper coverage, and typically includes warranty backing. DIY installation offers cost savings and customisation flexibility but requires specific skills and carries risks of improper application.

Question 5 – What thickness of underbody protection do I need for serious off roading?

Steel and stainless steel plates typically measure 3mm or 4mm thick, with 4mm being the most popular choice among serious off-roaders. Aluminum requires 6mm thickness to achieve similar strength to thinner steel plates. While reputable suppliers suggest 3mm provides adequate protection for most conditions, the extra thickness offers additional peace of mind for technical terrain and rock crawling.
